Warn - XD9000i Winch

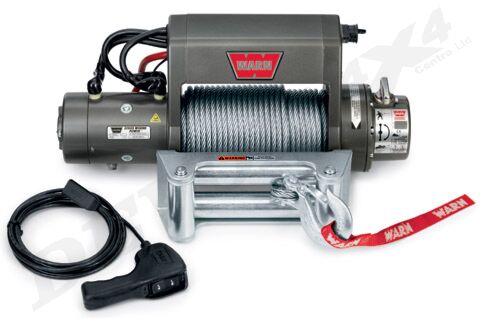

Warn XD9000i Winch

Fast and reliable in real trail conditions
No-load retrieval line speed of 38 per minute. Integrated solenoid. Runs cool with low amp draw for long winching duty cycles. Comes with 125 of 5/16 wire rope.

• Integrated control box provides excellent protection to electronics
• Exclusive brake design provides superior control while winching
• Durable 3-stage planetary geartrain for smooth, reliable, operation
• Series-wound, high-speed motor provides fast line speed and strong pulls
• Chip-resistant, powder-coated finish
• Remote control with 12 (3.7m) lead
• Durable 5/16 (8mm) diameter galvanized steel wire rope.

XD9000i Specs

• Part Numbers: 27550
• Winch Model: XD9000i
• Rated Line Pull: 9,000 lbs. (4080 kgs) single-line
• Motor: Series Wound 12V 4.6 hp
• Electrical controls: Solenoid
• Remote Control: Remote switch, 12 (3.7m) lead
• Geartrain: 3-Stage Planetary
• Gear ratio: 156:1
• Clutch (freespooling): Sliding Ring Gear
• Brake: Automatic Direct Drive Cone
• Drum diameter/Length: 2.5 /9.0 (6.4cm/23cm)
• Weight: 85 lbs. (38.5kgs.)
• Wire rope: 125, 5/16 dia. (38m, 8mm)
• Fairlead: Roller
• Recommended Battery: 650 CCA minimum for winching
• Battery leads: 2 gauge, 72 (1.83m)
• Finish: Argent Gray Powder Coat
• Winch Dimensions: 21.8 L. x 6.3 D. x 9.9 H. (553mm L. x 160mm D. x 254mm H.)
• Mounting Bolt Pattern: 10.0 x 4.5 (254mm x 114.3mm)
