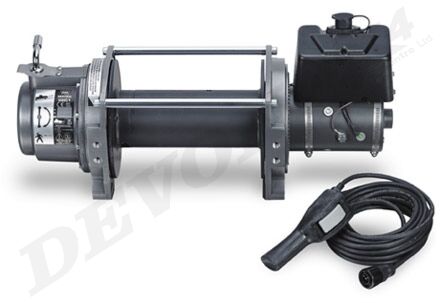

Warn - Series 9 DC Winch 24v

Warn Series 9 DC electrically powered winches feature a 9,000 lb. pulling capacity, providing heavy-duty pulling power for lighter-weight vehicles in the toughest situations. These winches have a higher gear ratio that provides the fastest line speed in the Warn industrial winch lineup. The contractors and motors are potted in a 2-part silicone compound that protects them from water intrusion, allowing for dependable operation in up to 6 ft. of water! Their SAE J706-compliant disc brakes control and hold your load in the harshest situations. Warn Series 9 DC electric winches include 32 ft. rugged industrial remote controls and a thermal overload switch to prevent overheating. Warn Series 9 DC winches are built to stringent quality standards to offer unmatched performance in a rugged and durable package.

Winch Style: Electric
Pull Rating (lbs): 9,000 lbs.
Volts: 24 V
Winch Fairlead Type: None
Remote Included: Yes
Remote: 32 ft. wired remote
Free-Spooling: Yes
Brake: Yes
Power Out: Yes
Drive Gear: 2-stage planetary
Winch Line Included: No
Winch Line Type: Cable
No Load Line Speed: 47.00 fpm
Conforms to J706 Standards: Yes
Mounting Hole Quantity: 8 holes
Mounting Pattern Length (in): 12.000 in.
Mounting Pattern Width (in): 4.500 in.
Weight: 95.000 lbs.
Motor Horsepower: 2.50 hp
Gear Reduction Ratio: 199:1
Notes: Includes second 12.000 in x 6.500 in. mounting pattern. Recommended cable diameter of 1/2 in.
