Warn - 9.0RC Short Drum Winch

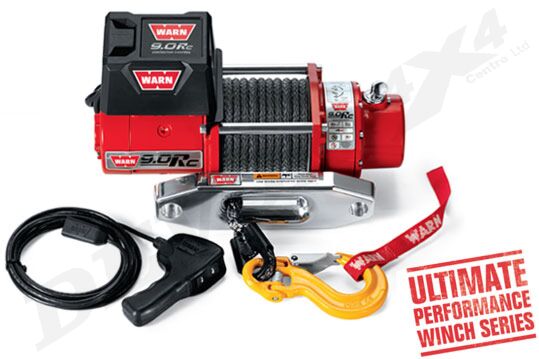

Warn 9.0RC Winch

A compact, lightweight winch for rock sports
Competitive rock crawling means tackling tough climbs, intense approach angles and tight turns. Thats why rock crawling rigs need a low-profile, lightweight winch like the Warn 9.0RC that delivers maximum power in a compact, 54-lb. unit. The 9.0Rc is a winch built for rock crawlers looking for efficiency, reliability and legendary Warn performance.

• 4.8 hp series wound motor delivers 9,000 lbs. of pulling capacity, and fast line speed under load
• Next-generation control pack delivers long duty cycles
• New-style remote control
• 50 of 3/8 (15 m of 9.5 mm) diameter synthetic rope combined with a rugged, 360-degree swivel hook and thimble
• Ballistic nylon sliding sleeve that provides extra rope protection against abrasion and wear
• Aluminum hawse fairlead
• Exclusive multi-segment cam actuated brake for positive operator control during winching
• Gloss red paint with primer undercoat gives superior corrosion resistance

9.0RC Specs

• Winch Model: WARN 9.0RC
• Part Number: 71550
• Rated Line Pull: 9,000 lbs. (4080 kgs) single-line
• Motor: Series Wound, 12V 4.8 hp
• Electrical controls: Contactor
• Remote Control: Remote switch, 12 (3.7m) lead
• Geartrain: 3-Stage Planetary
• Gear ratio: 216:1
• Clutch (freespooling): Sliding Ring Gear
• Brake: Automatic mechanical cone brake
• Drum diameter/Length: 2.75 in/4.75 in (7.0cm/12cm)
• Weight: 54 lbs. (24.8kgs.)
• Rope: 50 ft, 3/8 in (15m, 9.5mm) Spydura™ synthetic Rope
• Fairlead: Polished Aluminum Hawse
• Recommended Battery: 650 CCA minimum for winching
• Battery leads: 2 gauge, 72 in (1.83m)
• Finish: Gloss red paint over primer undercoating
• Winch Dimensions: 16.8 L. x 6.3 D. x 7.6 H. (427mm L. x 160mm D. x 194mm H.)
• Mounting Bolt Pattern: 6 x 4.5 (151mm x 114.3mm)
