Warn - XD9000-S 12v Winch

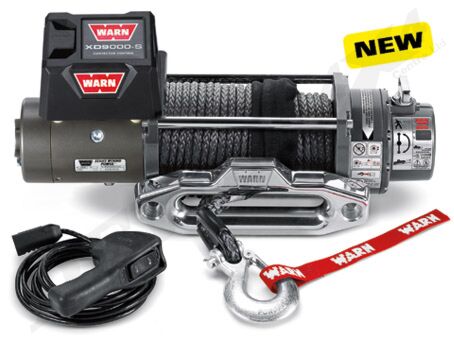

Warn XD9000-S Winch
Speed, Reliability and Synthetic Rope
Long time best selling winch now with WARN Spydura synthetic rope Comes with 80 ft. of 3/8 (24.38m of 9.5mm) WARN Spydura synthetic rope, hook, remote control on 12 (3.7m) lead and polished aluminum hawse fairlead

• Series-wound, high-speed motor provides fast line speed and strong pulls

• Low-profile design and separate control box allows for a wide range of mounting options

• Next-generation contactor control pack delivers long duty cycles and exceptional durability

• Durable 3-stage planetary geartrain for smooth, reliable, operation

• Exclusive brake design provides superior control while winching

• Newly designed hand-held remote control

• Chip-resistant, powder-coated finish

• The corded WARN remote is constructed of durable EPDM rubber, and features enhanced switch sealing.

XD9000-S SPECS/PART NUMBERS
Winch model: WARN XD9000-s
Part number: PN 88550
Rated line pull: 9,000 lbs., (4080 kg) single-line
Motor: Series Wound
Electrical controls: Contactor
Remote Control: Remote switch 12 (3.7m) lead
Geartrain: 3-Stage Planetary Gear ratio: 156:1
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum diameter/Length: 2.5/9.0 (6.4cm/23cm)
Weight: 59 lbs. (26.8 kg)
Synthetic Rope: 80, 3/8 diameter (24.38m, 9.5mm diam.)
Fairlead: Polished Aluminum Hawse
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72 (1.83m)
Finish: Argent Grey Powder Coat
