Warn - 9.5 XDC-S Winch

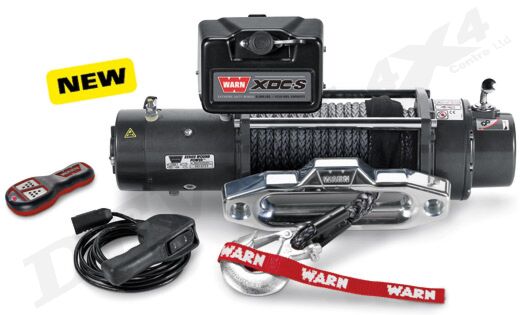

WARN XDC-S Winch

Fast, Powerful and Includes Synthetic Rope
A winch that will perform in the harshest environments.

• Comes with 80 ft. of 3/8 (24.38m of 9.5mm) WARN Spydura synthetic rope, hook, remote control on 12 (3.7m) lead, hand-held wireless remote and polished aluminum hawse fairlead
• Thermometric protection device to ensure long motor life by suspending winch operation if the motors temperature becomes elevated beyond its normal operating range
• Series-wound winch motor is strong and reliable
• Extreme-duty winch sealing. Enables superior water resistance
• Extended-duty control pack delivers long duty cycle to help you tackle the most demanding pulls
• 3-Stage planetary geartrain. Proven to be the most reliable efficient and durable design
• Exclusive brake design. Provides superior operator control when winching
• Includes both corded and wireless winch controls
• Remote-mount control box allows for various mounting options
• High gloss, chip-resistant powder-coated finish. Provides superior corrosion resistance

The corded WARN remote is constructed of durable EPDM rubber, and features enhanced switch sealing. This winch also comes with a hand-held wireless remote.

XDC-S Specs

• Winch model: WARN XDC-s
• Part number: PN 88750
• Rated line pull: 9,500 lbs., (4310 kgs.) single-line
• Motor: 12V Gen II, Series Wound
• Electrical controls: Contactor
• Remote Control: Remote switch, 12 (3.7m) lead and
• Geartrain: 3-Stage Planetary
• Gear ratio: 156:1
• Clutch (freespooling): Sliding Ring Gear
• Brake: Automatic Direct Drive Cone
• Drum diameter/Length: 2.5/9.0 (6.4cm/23cm)
• Weight: 68 lbs. (30.8 kg)
• Synthetic Rope: 80, 3/8 diameter (24.38m, 9.5mm diam.)
• Fairlead: Polished Aluminum Hawse
• Recommended Battery: 650 CCA minimum for winching
• Battery leads: 2 gauge, 72 (1.83m)
• Finish: Chromate with high-gloss dark-gray powder coat
• Winch Dimensions: 21.8 L. x 6.3 D. x 7.6 H. (555mm L. x 160mm D. x 193mm H.)
• Mounting Bolt Pattern: 10.0 x 4.5 (254mm x 114.3mm)
