Warn - ACI 3000 115/230 volt Winch

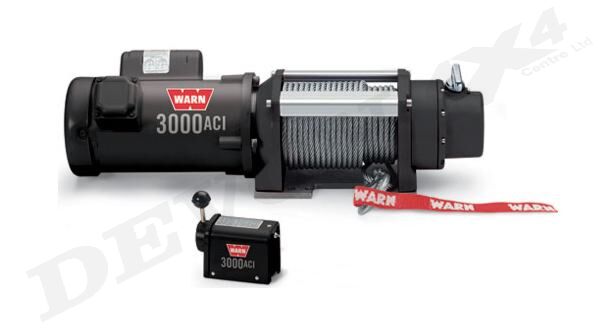

WARN 3000 ACI

With a 3,000 lbs. pulling capacity, a TEFC Induction AC motor for a long duty cycle and 100 of 5/16 wire rope, the 3000 ACI just what you need when you need a heavy-hauling AC powered winch. The perfect fixed-mount station winch.

3000 ACI Specs

• Part Number: PN 93000
• Capacity: 3,000 lbs. (1361 kgs) single line
• Switch Type: Drum switch/station type
• Motor: TEFC induction AC motor
• HP: 0.7 hp 56C
• Power: 115/230 volt
• Geartrain: 3-Stage planetary
• Clutch: Lever-Actuated Sliding
• Brake: Dynamic and Mechanical Braking
• Wire Rope: 5/16 X 100 (30.5 m)
• Fairlead: None
• Electrical Leads: None
• Weight: 76 lbs. (34.5kg)
• Warranty: Limited One Year
• Replacement Wire Rope: PN 27110
