Warrior 12000 V2 Samurai 24v Electric Winch with Synthetic Rope
£663.00 £552.50
120VA24
Brand :
Overview

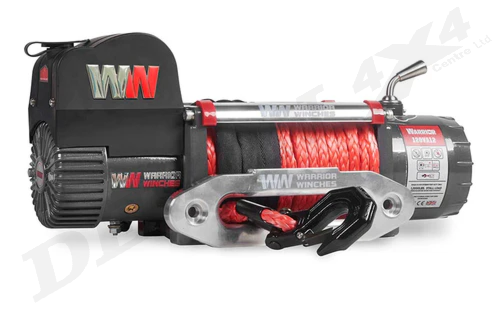

12000 V2 Samurai 24v Electric Winch with Synthetic Rope
Our premium “Next Generation” Samurai range are even faster, with a lower current draw and now boast a revolutionary external brake, more capable of load holding & lowering, as well as ensuring there’s no heat build up in the drum.
Ideal for recovery and 4x4 applications. Outstanding features include high quality series wound double sealed motor with solid brass contacts, heavy duty 4 pin waterproof contactors, double sealed drum on maintenance free bearings and quiet, efficient full steel planetary gearing. Comes with stainless steel roller fairlead and fittings as standard. The 12V version comes complete with heavy duty integrated wireless remote.
SPECIFICATIONS
| Rated Line Pull | 12000 lbs (5443 kg) |
|---|---|
| Motor | 12v : 6.7hp / 5.0kw 24v : 8.0hp / 6.0kw |
| Gearing | 253:1 |
| Braking Action | External Brake |
| Drum Size - Dia x L | 63 x 223mm (2.48 x 8.78 in) |
| Cable - Dia x L | 11mm x 25m (0.43 in x 82 ft) |
| Dimensions | 559 x 160 x 248mm (22 x 6.3 x 9.8 in) |
| Mounting Pattern | 254 x 114 mm (10 x 4.5 in) |
| Weight kg | 32 kg (71 lbs) |
| Certification | CE Certified |
| Layer of Rope/Cable | Line Pull: lbs(kgs) | Rope on drum ft(m) |
|---|---|---|
| 1 | 12000 (5443) | 15.1 (4.6) |
| 2 | 9563 (4338) | 34.1 (10.4) |
| 3 | 7907 (3586) | 57.7 (17.6) |
| 4 | 6755 (3064) | 83.7 (25.5) |
| Line Pull lbs (kgs) | Line Speed 12v ft/min (m/min) | Line Speed 24v ft/min (m/min) | Amp Draw 12v | Amp Draw 24v |
|---|---|---|---|---|
| 0 | 29.5 (9.0) | 37.7 (11.5) | 50 | 45 |
| 6000 (2721) | 10.5 (3.2) | 12.1 (3.7) | 240 | 140 |
| 8000 (3629) | 8.2 (2.5) | 9.8 (3.0) | 280 | 180 |
| 10000 (4535) | 5.9 (1.8) | 7.2 (2.2) | 320 | 220 |
| 12000 (5443) | 4.6 (1.4) | 5.2 (1.6) | 380 | 250 |
| SKU | 120VA24-WHS |
|---|---|
| Manufacturer | Warrior |
