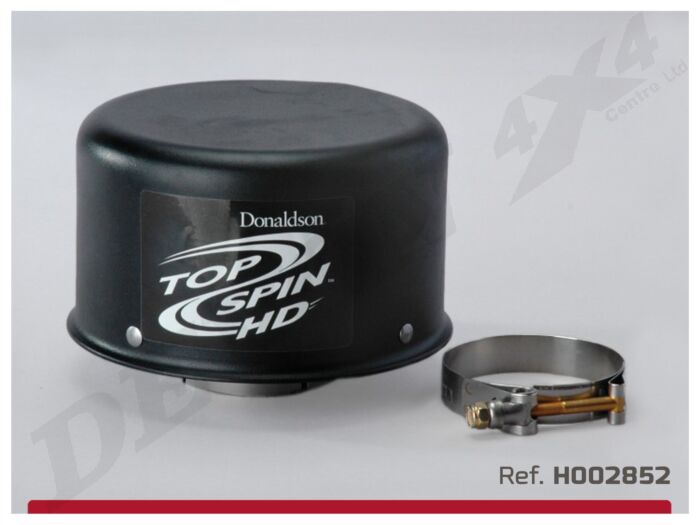

Donaldson - Topspin HD Cyclone - For 89mm Snorkel Tops - 8m³

TopSpin™ HD

The TopSpin HD is an all-metal pre-cleaner is a durable solution for punishing conditions. TopSpin HD will extend primary air filter life, boost system efficiency and extend engine life in medium to heavy dust environments.

Features

• Separates up to 80% of incoming contaminant per ISO 5011
• All-metal construction:
  • Rugged one piece aluminum hood with recessed discharge louver sheds flying debris
  • One-piece stainless steel impeller is the only moving part. Dual bearings ensure reliable performance.
  • Stainless steel clamp with locking nut makes installation quick and secure. Clamp is included.
  • All the interior components are solid stainless steel to resist dirt, water, heat, and debris encountered in demanding environments
• Greatly extends air filter life
• Reduces air filter usage
• Lowers cost per operating hour
• Automatically ejects mixed debris
• Self-cleaning/self-scavenging
• No maintenance to clean bowl
• No exhaust ejector required
• Easy installation
  • Quick installation
  • One clamp to tighten
  • No wires or power requirements

Applications

• Engine airflows of 1.4 to 45.3 m³/min / 50 to 1600 cfm
• Primarily used in medium to heavy dust environments
• Great for off-road vehicles and equipment, including crawler tractors, farm tractors, skid steer loaders, mining, and fracking machines
• Recommended mounting: on top of the metal air cleaner inlet stack — do not mount on non-metal inlet stack
