Warrior 14500 SAMURAI V2 12v Electric Winch With Steel Cable
£609.00 £507.50
145VS12
Brand :
Overview

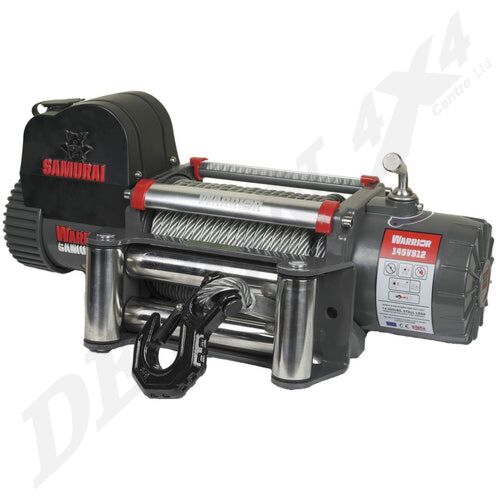

14500 SAMURAI V2 12v Electric Winch With Steel Cable
With a rated line pull of 6577kg (14500lbs) coupled with a 24v: 7.2hp / 5.4kw motor, the Samurai 14500 Electric Winch has the power to get the job done, whatever the situation. Supplied with heavy duty battery leads, remote handset and stainless steel mounting hardware. Our top performance winches just got better! The Next Generation Samurai models are faster, with lower current draw and include a new external brake. Other new features include an updated hook and wired remote.
Superb high specification winch. Ideal for recovery and 4x4 applications. Outstanding features include high quality series wound double sealed motor with brass fittings, heavy duty waterproof contactors, double sealed drum on maintenance free bearings, quiet, efficient full steel planetary gearing. Comes with roller fairlead and stainless steel and fittings as standard.
- All Brass (no corrosion) Series Wound Motor
- Double Sealed Motor
- Sealed Waterproof Contactor
- Contactor Cover for Added Protection
- Double Sealed Drum (Gearbox/Motor)
- Sealed 3 Stage Planetary Gears
- Aluminium Hawse Fairlead
Accessories Included
- Heavy Duty Battery Leads
- Heavy Duty Stainless Steel Roller Fairleads
- Isolation Switch
- Stainless Steel Mounting Hardware
- 3.8m Remote Handset
- Upgraded Hook
- Steel Cable 10.2mm x 25.5m
| Line Pull lbs (kgs) | Line Speed 12v ft/min (m/min) | Line Speed 24v ft/min (m/min) | Amp Draw 12v | Amp Draw 24v |
|---|---|---|---|---|
| 0 | 31.16(9.5) | 39.3 (12.0) | 60 | 50 |
| 6000 (2728) | 12.46 (3.8) | 13.8 (4.2) | 200 | 140 |
| 10000 (4545) | 5.57 (1.7) | 8.2 (2.5) | 310 | 190 |
| 12000 (5443) | 4.92 (1.5) | 5.9 (1.8) | 380 | 230 |
| 14500 (6577) | 3.28 (1.0) | 4.26 (1.3) | 430 | 260 |
| Layer of Rope/Cable | Line Pull: lbs(kgs) |
|---|---|
| 1 | 14500 (6577) |
| 2 | 11519 (5224) |
| 3 | 9556 (4334) |
| 4 | 8163 (3702) |
| SKU | 145VS12-WHS |
|---|---|
| Manufacturer | Warrior |
