Warrior 15000NH Hydraulic Winch With Steel Cable
£1,255.00 £1,045.83
15NHSHY
Brand :
Overview

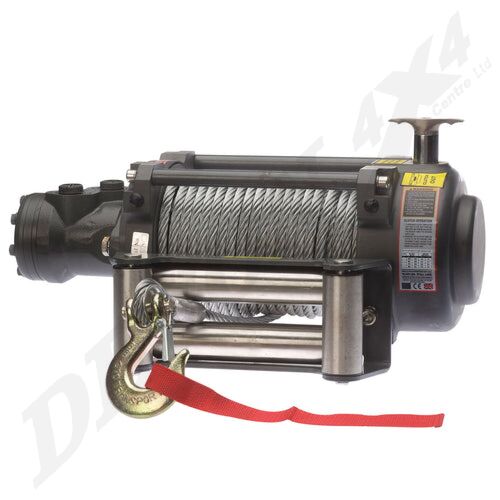

15000NH Hydraulic Winch With Steel Cable
DESCRIPTION
Compact, tough. A hydraulic winch for industrial and commercial applications. The unique patented steel gearing system combined with a highly efficient and powerful hydraulic motor ensures maximum performance over the full load range. Complete with internal brake to ensure maximum control and load holding. Stainless steel roller fairleads and fittings are standard.
OUTSTANDING FEATURES
- Patented Heavy Duty Gearing
- Integral, Automatic Failsafe Brake
- Spring Engaged Manual Freespool
- Stainless Steel Fairlead and Fittings
- Rugged and compact for Long Life
ACCESSORIES INCLUDED
- 3/8 Hook
- Heavy Duty Roller Fairleads
- Steel Cable 11mm x 26m
| Rated Line Pull | 15000 lbs (6804 kg) |
|---|---|
| Motor | Hydraulic Dis 80 ml/r |
| Gearing | 33.4:1 |
| Drum Size Dia x L | 89 x 217mm |
| Cable Dia x L | 12mm x 26.5m |
| Dimensions | 554 x 226 x 262mm |
| Weight | 68.8 |
| Mounting Pattern | 254 x 114.3mm |
| Layer of Wire Rope | Line Pull lbs (kgs) | Rope on drum ft(m) |
|---|---|---|
| 1 | 15000 (6804) | 18.0 (5.5) |
| 2 | 12120 (5498) | 41.7 (12.4) |
| 3 | 10168 (4612) | 65.9 (20.1) |
| 4 | 8757 (3972) | 86.9 (26.5) |
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Flow L/min | Pressure Mpa |
|---|---|---|---|
| 0 | 1.6 (0.5) | 5 | 2.0 |
| 5000 (2268) | 3.3 (1.0) | 10 | 4.3 |
| 10000 (4536) | 6.6 (2.0) | 20 | 8.7 |
| 12000 (5443) | 9.8 (3.0) | 30 | 10.0 |
| 15000 (6804) | 19.7 (6.0) | 60 | 13.0 |
| SKU | 15NHSHY-WHS |
|---|---|
| Manufacturer | Warrior |
