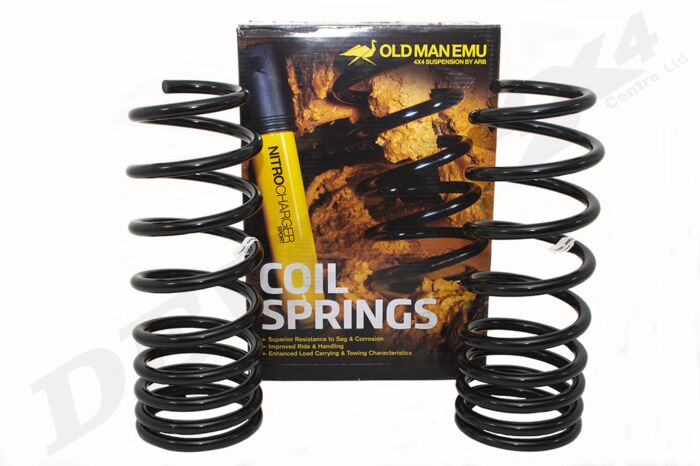

Old Man Emu - Coil Springs - Toyota Land Cruiser 100 Series (Ifs) To 2000

Coil Springs

When undertaking 4×4 remote area travel, the need to carry sufficient fuel, water, vehicle spares and safety equipment invariably means that your 4WD will be fully loaded, placing a lot of strain on suspension components.

As part of their integrated 4WD suspension systems, Old Man Emu designs a range of coil springs for each vehicle, enabling the installer to match the most appropriate springs to the intended application. While ride height increases are attained, emphasis is placed on ride control improvements. Further fine tuning is achieved when the springs are matched to a corresponding set of Old Man Emu shock absorbers, delivering a fully integrated system designed specifically to suit your vehicle.

• Springs are formed on precision mandrels
• Scragging before and after shot peening to prevent sagging
• Constant and variable rate coils available for multiple applications
• Coil spring end configurations designed to exact specifications guaranteeing perfect fitment to your vehicle
• Durable powder coat finish

Toyota:
Land Cruiser 100 Series (IFS) to '2000 - 10mm - 200 Kgs - Rear

X5K Steel - X
Bar Dia mm - 18
Free Height MM - A - 465
Free height MM - B - 465
Number of Turns - 9
Coil weight (Kg) - 8.8
Spring Rate - Ibf/in - 240 / 300
Spring Rate NN - 42 / 52
OE Spring rate - 170
