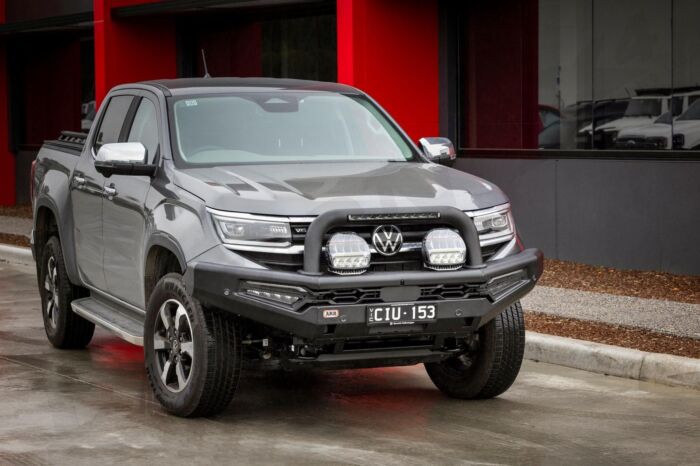

ARB - Volkswagen Amarok Summit Winch Bumper - (2023-2025)

£1,914.22 £1,595.18
3970050
Overview

Fitment Details:

  • Volkswagen Amarok MY23 Amarok,

ARB Summit Sahara Bar

The ARB Summit Sahara Bar delivers all the strength and functionality of the legendary ARB Summit Bull Bar, but with a sleek, low-profile design that complements modern 4WD styling. Suitable for a wide range of contemporary off-road vehicles, the Summit Sahara Bar provides outstanding frontal protection, practical recovery options, and a refined, understated look for drivers who want toughness without bulk.

Engineered to handle the harshest conditions, the Summit Sahara Bar features a robust mounting system that distributes impact and winching loads evenly across the vehicle chassis, ensuring strength, safety, and long-term durability. The split-pan design increases structural integrity while improving airflow to the radiator and allowing easy winch access and operation.

A wide 30 mm edge radius across the wings and centre section enhances strength and perfectly matches the contours of modern vehicles. The bar is compatible with winches, off-road jacks, and driving lights, and retains full functionality of factory safety systems including airbags, parking sensors, and collision-avoidance technology.

For additional customisation, the bar can be fitted with an optional polished or painted centre tube, and includes provision for fog lights, aerials, and LED indicators as standard.

Key Features:

  • Suitable for modern 4WDs and touring vehicles.

  • Low-profile design with refined, contemporary styling.

  • ARB wing geometry maintains strength and approach angle.

  • Press-formed top pan and cover panel for a smooth, strong finish.

  • Split-pan design for increased strength and airflow.

  • Optional winch fitment with reinforced mountings for maximum recovery loads.

  • Integrated off-road jacking points for safe recovery use.

  • Provision for driving lights, aerials, and optional LED fog lights.

  • Fully sealed LED indicators and clearance lights (standard).

  • Compatible with factory airbags, parking sensors, and safety systems.

  • Optional polished or painted centre tube for a distinctive appearance.

Built to ARB’s exacting standards, the Summit Sahara Bar combines proven protection, integrated functionality, and premium styling — the perfect upgrade for those who demand capability and class in one package.

More Information
SKU3970050-ARB
ManufacturerARB
Vehicle MakeVolkswagen
Vehicle ModelAmarok
Vehicle SeriesAmarok (2016-2023)
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
  • Vehicle specific design suitable for the MY23 VW Amarok.
  • Registered design of styling and design components.
  • Durable steel construction for maximum protection.
  • Incorporates ARB's renowned multi fold upswept and tapered wing design for optimum strength and approach angle.
  • 30mm radius on wings and centre section.
  • Engineered, air bag compatible mounting system secures to the chassis via high tensile bolts.
  • Split pan design for maximum strength and airflow.
  • Extensive protection panels on centre and either side.
  • Pressed form top pan and aluminium (powder coated matt black) winch cover panel.
  • Optional matt black tube kit or textured powder tube kit with integrated 20ÔÇØ LED light bar (requires ARB loom PN 3500810)
  • Optional Roller Fairlead Cover, Matt Black 3501070
  • Optional Camera Relocation kit, required on models with Forward Facing Camera 3540390
  • For models without fog lights (Core) 6821430 universal switch loom will be required to activate fog lights in bar
  • Compatible with ARB Recovery Point PN 2840060 and 2840070
  • Twin ARB Jack or Hi-Lift jack points located in the lower pan
  • Two aerial brackets located on the centre hoop.
  • Will accommodate Warn, Magnum, Bushranger, Smittybilt low mount model electric winches up to 10,000lb.
  • Provision to accommodate ARB Intensity, ARB Intensity IQ and Solis LED's and a range of Bushranger lights.
  • Includes ARB LED Fog light, LED Daytime Running Light and LED indicators and clearance lights
  • Compatible with original equipment safety features
  • Bar adds approximately 169mm to the overall length of the vehicle.
  • Approximate weight of the bar, chassis mounts and fitting kit is 72.1kg. Tube kit is approx 6.8kg with LED light, 3.6kg without.  Approximately 11kg is removed from the vehicle for fitment of the bar.
  • Metaprep primer for additional corrosion resistance.
  • Finished in matt black powder coat with the option to colour code to vehicle colour.
Attribute Value
Bar Code 9332018107879
Fitting Time (min) 300
Material Steel
Specification Wings & Pans
Thickness [mm] 3
Colour black
Surface Zinc-coated
Surface Powder coated
Surface Smooth
Product Feature Bumper-Cut Design
Product Feature ADR & Air Bag compliant
Product Feature Spot Light mounting Tabs/Provision
Product Feature With Fog light inserts
Product Feature CB Aerial Bracket
Quantity x 2
Incremental Distance 169
Incremental Weight 72
Light Type Indicator with Clearance - LED
Lens Type Clear Lens
Lamp Type LED
Specification 2 Jack Points
Specification Underpanels incl
Product Feature Winch Mounting Kit available
Winch Compatible YES
Warranty 3 Years



  • Suits Warn M8/XD9/XP9.5/XDC9.5, Zeon 8/8-S/10/10-S/Platinum 10/10-S, Magnum 8K/10K, Smittybilt Gen 2 X20 10K, Bushranger DV-9TH, DS-9.5TH & SEAL9.5TH low mount winches
  • (3540240) Winch Install Kit Required
  • Winches with synthetic require (3500600) Hawse Fairlead Spacer Kit or alternative Hawse due to Hawse design.
  • (6821430) Loom required on CORE Models without fogs to activate fog lights
  • (3540390) Optional Camera Relocation Kit, Required on models with front facing camera
