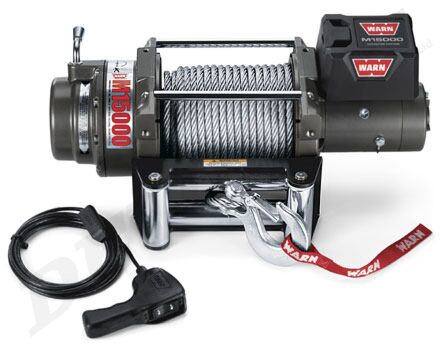

Warn - M15000 12V Winch

WARN M15000 12V

Enough capacity for the heaviest loads
A heavy-duty 15,000 lb. capacity winch with a 4.6hp series wound motor.
Direct drive cone braking system.
Control pack is designed for clearance and ease of access.
Comes with 90 of 7/16 wire rope.

Features:

• High strength carrier plates are designed to handle heavy gear train stresses
• Series-wound, high-speed motor provides fast line speed and strong pulls
• Brake provides superior control while winching
• Remote-mount control box allows for various mounting options
• Durable 3-stage planetary geartrain for smooth, reliable, operation
• Remote control with 12 (3.7m) lead
• Chip-resistant powder-coated finish
• 90 of 7/16 (27m of 11mm) diameter wire rope

M15000 Specs

• Part number: 47801 (12V)
• Rated Line Pull: 15,000 lbs. (6804 kgs) single-line
• Motor: Series Wound, 12V 4.6 hp, 24V 2.5 hp
• Electrical controls: Contactor
• Remote Control: Remote switch, 12 ft (3.7m) lead
• Geartrain: 3-Stage Planetary
• Gear ratio: 315:1
• Clutch (freespooling): Rotating Ring Gear
• Brake: Automatic mechanical cone
• Drum diameter/Length: 3.5 in /8.2 in (9cm/21cm)
• Weight: 136 lbs. (62kgs.)
• Wire rope: 90 ft, 7/16 in (27m, 11mm) diameter
• Fairlead: Roller
• Recommended Battery: 650 CCA minimum for winching
• Battery leads: 2 gauge, 72 in (1.83m)
• Finish: Argent Gray Powder Coat
• Winch Dimensions: 25.2 L. x 8.5 D. x 11 H. (640mm L. x 215mm D. x 279mm H.)
• Mounting Bolt Pattern: 10.0 x 4.5 (254mm x 114.3mm)
