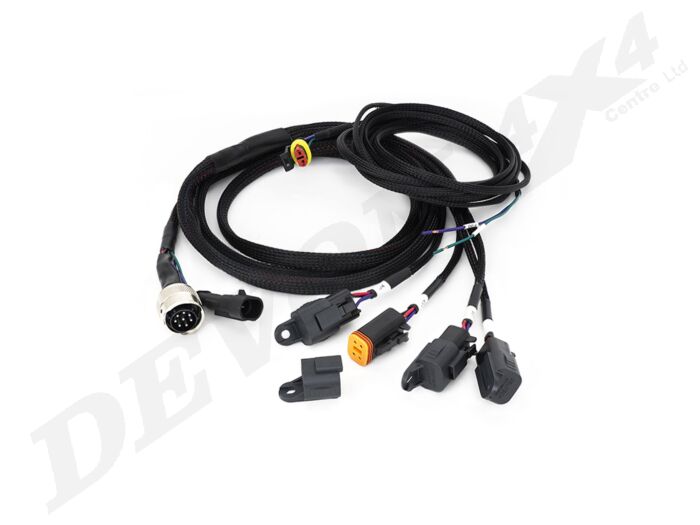

Lazer - Four-Lamp Harness Kit - with ITT Connector (Carbon-6 Gen3, 12V)

Lazer - Four-Lamp Harness Kit with ITT Connector (4-Pin, Deutsch DT, 12V)

Product Description:

The ideal solution for wiring 4x Lazer Carbon-6 (Gen3) High Performance LED Driving Lights, where the vehicle side connection is compatible with an ITT Cannon Connector. The resulting setup is quick, easy, and reliable with Deutsch DT06-4S lamp connectors and no configuration procedures. The kit features 1.85m of flex on the lamp cable(s) to the 8-pin Trident Ringlock ITT Cannon Connector (compatible with Skoda R5 rally cars as an example)

Additional signal wires from the ITT Connector are included for operation of lamps’ in either: ‘Fog’ mode (purple wire), or ‘E-mark’ mode (green wire).

All Carbon-6 (Gen3) LED Driving Lights feature a corresponding built-in DT04-4P Deutsch Connector (with gold plated solid DT contacts).

Compatiable with:

• Carbon-6 DRIVE (Gen3)
• Carbon-6 SPOT (Gen3)

Key Features:

• Four-Lamp Wiring Kit for Carbon-6 (Gen3) LED spotlights / 4-Way Rally Pod System
• 2m cable length
• ITT Connector connections
• Additional extension cable for Fog and E-Mark modes
• Braided cable sections for added protection in engine bay
