Warn - ZEON 10 Winch 12v

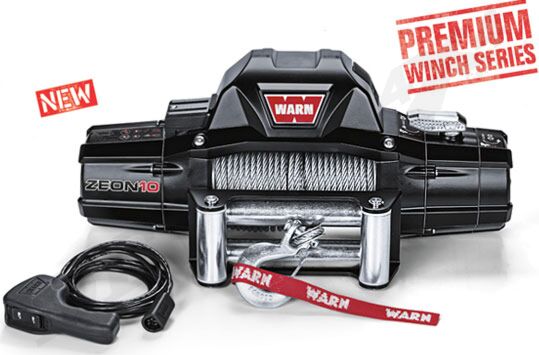

Warn Zeon 10 Winch
10,000 lbs. of cutting-edge pulling muscle
Choose your way to conquer the terrain. The ZEON 10 is tough enough to tackle anything you will, with a look that is advanced, capable and strong. Muck-busting sealing keeps out everything but the good times. Add a hyper-durable cast-aluminum housing, satin-black finish, and 10,000 lbs. single-line pulling capacity and, well, youve got a workhorse unit you can trust for years to come.

• 10,000 lb. (4536 kg) single-line pulling capacity.

• Includes 80 of 3/8 galvanized steel wire rope

• Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks. (Relocation kit required and sold separately*)

• Updated planetary gear train and series-wound motor deliver fast, quiet, and reliable pulling power

• Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion. Improved winch sealing to keep the elements out.

• Large diameter winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.

• Backed by the WARN Limited Lifetime Warranty

*Control Pack Relocation Kit. Required to mount control box remotely from winch. PN 89970 (Short kit), PN 89960 (Long kit)

ZEON 10 SPECS/PART NUMBER
Part number: 88990 (12V)
Part number: 90665 (24V) * does not include wire rope
Rated line pull: 10,000 lbs. (4536 kg) single-line
Motor: series wound, 12V DC, 24V DC
Electrical controls: Contactor
Remote Control: Remote switch, 12 (3.7m) lead
Geartrain: 3-stage planetary
Gear ratio: 216:1
Clutch (freespooling): Rotating ring gear
Brake: Automatic mechanical cone
Drum diameter/Length: 3.15/9.0 (80mm/229mm)
Weight (kit shipping): 98 lbs. (44 kg)
Rope: 3/8 x 80 (9.52mm x 24.38m) steel
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72 (1.83m)
Finish: Satin-black powder coat
Warranty: Limited lifetime

Winch Dimensions:
Integrated configuration: 24.25 L x 7.15 D x 10.52 H
(615.9mm L x 181.6mm D x 267.1mm H)
Low-profile configuration: 24.25 L x 7.15 D x 7.84 H
(615.9mm L x 181.6mm D x 199.02mm H)

Mounting Bolt Pattern: 10.0 x 4.5 (254mm x 114.3mm)
