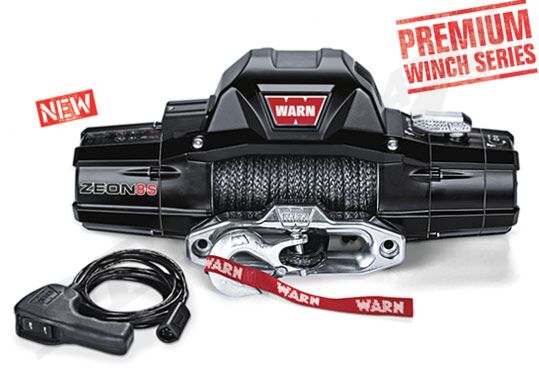

WARN ZEON 8-S Winch

Advanced, capable, and strong
Dont let the good looks fool you. Weve packed the ZEON 8-S winch with all the performance features off-roaders said they needed most. From a heat-dissipating brake down to an incredibly smooth planetary gear train, this winch is ready to hit the trail. The 8,000 lb. pulling capacity, combined with a fast line speed make this winch the perfect choice for Jeep and SUV trail rigs.

• 8,000 lb. (3630 kg) single-line pulling capacity
• Includes 100 of 3/8 WARN Spydura synthetic rope, which includes a temperature-resistant sleeve on the first layer, a ballistic nylon sliding sleeve for abrasion resistance, and a polished aluminum hawse fairlead.
• Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately*).
• Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion. Improved winch sealing to keep the elements out.
• Large diameter winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.
• Backed by the WARN Limited Lifetime Warranty

*Control Pack Relocation Kit. Required to mount control box remotely from winch. PN 89970 (Short kit), PN 89960 (Long kit)

ZEON 8-S Specs/Part Number

Part number: 89670 (CE, for International sales only)
Rated line pull: 8000 lbs. (3630 kg) single-line
Motor: 12V DC, series wound
Electrical controls: Contactor
Remote Control: Remote switch, 12 (3.7m) lead
Geartrain: 3-stage planetary
Gear ratio: 162:1
Clutch (freespooling): Rotating ring gear
Brake: Automatic mechanical cone
Drum diameter/Length: 3.15/9.0 (80mm/229mm)
Weight (kit shipping): 75 lbs. (34 kg)
Rope: 3/8 x 100 (9.5mm x 30.5m) Spydura synthetic
Fairlead: Hawse
Recommended Battery: 650 CCA minimum for winching
Battery leads: 25mm gauge, 72 (1.83m)
Finish: Satin-black powder coat
Warranty: Limited lifetime

Winch Dimensions:

Integrated configuration: 24.25 L x 7.15 D x 10.52 H
(615.9mm L x 181.6mm D x 267.1mm H)
Low-profile configuration: 24.25 L x 7.15 D x 7.84 H
(615.9mm L x 181.6mm D x 199.02mm H)

Mounting Bolt Pattern: 10.0 x 4.5 (254mm x 114.3mm)
