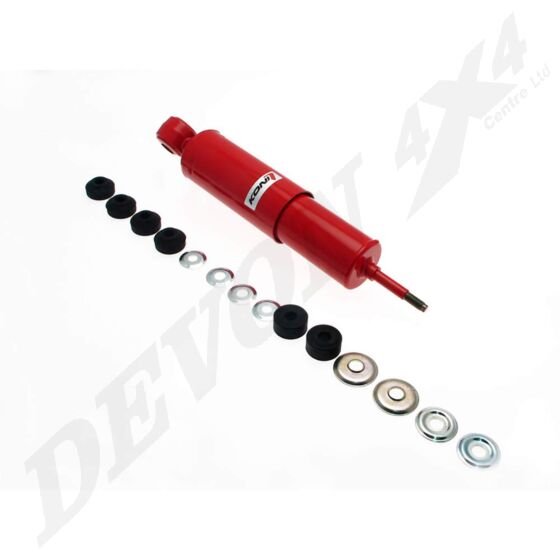

Koni - Land Rover Defender 110|Defender 90|Discovery 1|Range Rover Classic Heavy Track Raid - Rear

Koni Raid Dampers - Extreme Off-Road 4X4

With an experience in shock-absorber designing and manufacturing for many years, KONI, leader in

Heavy Duty dampers (buses, trucks, trailers, military applications, railway, etc. ...), has combined

its high level of technology and its 4x4 market knowledge to create a range of dampers dedicated to

the raiders.

KONI offroad shocks are reliable high quality replacement performance parts for customers who seek a

non sophisticated but effective product to do the jobs it's designed for; to finish in offroad rally

raids.

The main features of the twin-twin technology RAID series are:

• Heavy Duty solid and robust attachments
• Intergral bump stop
• Special extra-heat resistant Viton seal
• Teflon piston rod guide
• Hydraulic rebound stop
• Piston rod diameter Ø18mm
• Teflon piston-ring
• Adjustable rebound forces for individual fine-tuning
• Bigger reservoir diameter Ø70 mm giving double the oil capacityand more high-performance oil to improve heat exchange
• Outer tube thickness of 2.5mm for extra strentgh

Possibility to adjust the rebound forces in order to adapt your damper to your springs and / or loads and so increase its life-span.

RAID shock absorbers have a built-in hydraulic rebound valve with spring. This rebound valve substantially increases the damping
forces during the last 40 or 20 mm of the rebound stroke to prevent metal-to-metal contact..

Land Rover Rear
Discovery 1 89-98
Defender 90 / 110 / 130 84-15
Range Rover Classic 71-96

RAID Dampers: for raised suspension 40mm lift
