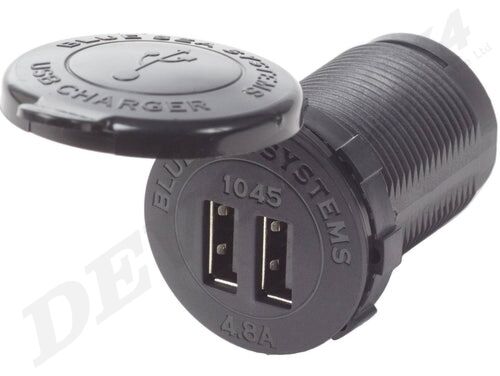

Blue Sea - Fast Charge Dual USB

The Blue Sea Fast Charge Dual USB features intelligent device recognition resulting in superfast charging times. This 4.8A Blue Sea USB Charger can offer charging times up to 3x faster than a standard 2.1A charger.

A flip-up rubber cap protects the Dual USB Socket when not in use. The Dual USB socket has been designed for marine applications therefore the internals are made of corrosion resistant materials.

• Maximum Output Current; 4.8A DC (total)
• Input Voltage: 12v DC- 24v DC
• Input Voltage Range: 9-32V DC
• Output Voltage 5V DC ‚±5%
• Parasitic Current Draw: 1mA
• Port Configuration: Intelligent Device Recognition
• Reverse Polarity Proctection: Yes
• Short Circuit Protection: Yes
• Thermal Overload Protection: Yes
• Weight: 0.07kg (0.15lb)
• Hole size required is 28mm (see Resources section below for full dimensions).

The Dual USB Socket accepts a 9v-32v input feed, making it suitable for both 12v and 24v applications. The Dual Socket is easily wired using a pair of standard 6.3mm male spade terminals on the rear of the socket. All you¢‚¬„¢ll require is a live supply feed and an earth/ground. We recommend a fused (5amp) power supply.

The Dual USB socket is suitable for mounting in any of the MUD range of accessories that accept a power socket, e.g. Tunnel Tray, Socket Housing and Socket Plates. The Blue Sea Fast Charge USB socket will also slot into the pre-wired Blue Sea Below Deck Panel (click image below for further details). Pictured below in the MUD Td5 Console.
