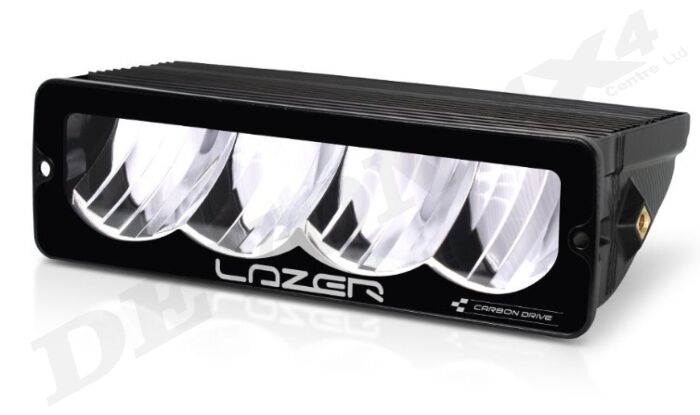

Carbon-4 Drive (Gen3) - Side Mount

Now in its third generation, the Carbon-4 (Gen3) LED driving light has been meticulously developed and tested at the highest levels of professional rally, track, and off-road motorsport. The latest redesign and re-engineering deliver more light, less weight, enhanced functionality, and effortless installation, making it the ultimate lighting solution for performance-driven applications.

Powerful Lighting Performance:

Available in two beam pattern options, the Carbon-4 (Gen3) offers:
✔ Spot Beam: 32-degree spread, reaching 1 lux at 675m, ideal for long-distance illumination.
✔ Drive Beam: 60-degree spread, reaching 1 lux at 374m, providing broader peripheral visibility.

Beyond High Beam mode, the Carbon-4 also features:
✔ Dip/Low Beam Mode: Drops the beam by 4 degrees to reduce glare from road signs, fog, or dust, improving visibility in challenging conditions.
✔ PWM-Controlled Light Modes: Allows race teams to customize lighting performance, adjusting brightness output up to 120% when necessary.

Advanced LED Technology & Electronics:

✔ 24 Premium Bin LEDs – 12 LEDs for High Beam, 12 for Dip/Low Beam, producing 6,240 raw lumens.
✔ Vacuum-Metallised Optics – Maximizes light projection, focusing more light exactly where it’s needed.
✔ CAE-Optimized Heatsink – Enhances heat dissipation, preventing performance degradation over time.
✔ Dynamic Drive Modulation – Protects internal electronics from damage due to extreme thermal and environmental conditions.

Versatile Mounting Options:

The Carbon-4 (Gen3) is designed for easy installation on a wide range of vehicles and includes multiple mounting solutions:
✔ Front-Fix Mounting: Includes springs and hardware for secure cutout installation, allowing precise angle adjustments.
✔ Side-Fix Mounting: Pre-fitted with brass inserts, requiring a mounting bracket (e.g., Aluminium Side Mount Kit - 1117K) for a stable setup.

Customization & Accessories:

✔ PWM Integration for Race Teams – Fine-tune light output to match specific racing conditions.
✔ Amber Lens Covers – Improves visibility in fog, dust, or snow.
✔ Black Lens Covers – Provides daytime protection when the lights are not in use.
