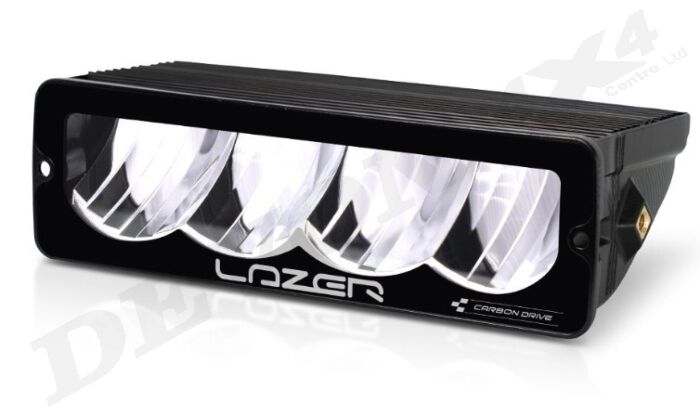

Carbon-4 Spot (Gen3) - Side Mount

The Carbon-4 Spot (Gen3) LED driving light is the next-generation motorsport lighting solution, engineered for professional rally, track, and off-road racing. Designed to maximize long-range visibility, the Carbon-4 Spot (Gen3) features a precision 32-degree beam pattern, delivering 1 lux at an impressive 675m per lamp.

Now in its third generation, the Carbon Series has been re-engineered to deliver more light, less weight, improved functionality, and effortless installation. It is a lightweight, high-output solution built for extreme racing conditions.

Key Features:

✔ Ultra-Long-Range Spot Beam – A focused 32-degree spread, reaching 1 lux at 675m, for maximum distant visibility.
✔ Dual Beam Functionality – Easily switch between High Beam and Dip/Low Beam to adapt to different driving conditions.
✔ Low Beam Mode for Reduced Glare – Lowers the beam by 4 degrees to minimize glare from road signs, dust, or fog.
✔ PWM-Controlled Light Modes – Race teams can fine-tune brightness and increase total light output up to 120% using a PWM signal.
✔ 24 Premium Bin LEDs – 12 LEDs dedicated to High Beam, 12 for Dip/Low Beam, emitting 6,240 raw lumens per lamp.
✔ Vacuum-Metallised Optics – Maximizes light projection for superior brightness and clarity.
✔ Advanced Heat Management – A CAE-optimized heatsink ensures maximum performance and longevity.
✔ Dynamic Drive Modulation – Protects internal electronics from thermal and environmental stress, ensuring reliability in extreme conditions.

Mounting & Installation:

The Carbon-4 Spot (Gen3) – Side Fix comes pre-fitted with brass inserts, requiring an appropriate mounting bracket (e.g., Aluminium Side Mount Kit - 1117K) for a secure and stable installation.

✔ Front-Fix Option Available: A separate version includes springs and hardware for adjustable cutout installation.

Customizable Accessories:

✔ Amber Lens Covers – Improves visibility in fog, dust, or snowy conditions.
✔ Black Lens Covers – Provides daytime protection when the lights are not in use.
