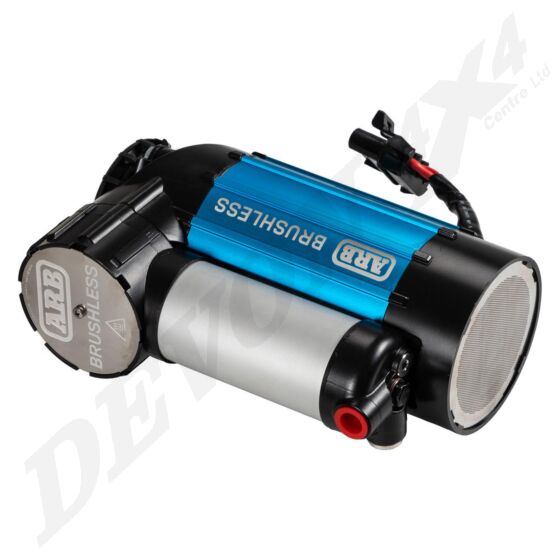

ARB - On-Board Air Compressor (Brushless) Single 12 Volt
£434.71 £362.26
CKBLA12
Overview
The ARB On-Board Air Compressor (Brushless) Single 12 Volt is ARB's next-generation permanently mounted air compressor, engineered with an industry-first brushless motor for greater performance, efficiency and reliability. Delivering 50% more airflow than ARB's market-leading brushed compressor, it provides a dependable air source for rapid tyre inflation, Air Locker activation and demanding off-road applications.
| Specification | Details |
|---|---|
| Voltage | 12V DC |
| Compressor Type | Single Brushless |
| Maximum Air Flow | 130.7L/min @ 0 PSI |
| Air Flow @ 29 PSI | 87.5L/min |
| Duty Cycle | 100% |
| Application | Tyre Inflation & Air Locker Activation |
| Warranty | 3 Years |
| Part Number | CKBLA12 |
ARB On-Board Air Compressor (Brushless) Single 12 Volt
The ARB On-Board Air Compressor (Brushless) Single 12 Volt represents the next generation of integrated vehicle air systems. Engineered with an industry-first brushless motor, it delivers significantly higher performance, improved efficiency and exceptional reliability for demanding touring and off-road applications.
NEXT-GENERATION BRUSHLESS PERFORMANCE
The innovative brushless motor delivers up to 50% more airflow than ARB's market-leading brushed compressor, allowing tyres to be inflated faster while providing a dependable air supply for Air Locker activation.
INTELLIGENT ELECTRONIC CONTROL
Electronic speed control continuously adjusts compressor performance to maintain optimum operation across changing pressure levels and ambient temperatures, ensuring consistent performance in all conditions.
ACTIVE COOLING SYSTEM
An integrated active cooling fan automatically continues operating after the compressor is switched off until the unit has cooled, helping maximise performance and long-term durability.
SMART DIAGNOSTICS
Built-in audio and visual status reporting provides live diagnostics, allowing the compressor to communicate its operating condition and alert the user when required.
ADVANCED PROTECTION
Integrated voltage protection, overload protection and intelligent system monitoring help protect both the compressor and the vehicle's electrical system from voltage fluctuations, over-current conditions and motor stall.
EASY INSTALLATION
Quick-release cam-lock mounting allows the compressor to be removed easily when required, while the brushless design eliminates the need for external relays, simplifying installation.
KEY FEATURES
- Industry-first brushless motor
- Permanent on-board installation
- Up to 50% more airflow than ARB's brushed compressor
- 100% duty cycle
- Fast tyre inflation
- Suitable for Air Locker activation
- Active cooling system
- Electronic speed control
- Live audio and visual diagnostics
- Voltage protection
- Overload protection
- Intelligent functional continuity monitoring
- Quick-release cam-lock mounting
- Relay-free installation
- Class-leading airflow-to-weight ratio
- 3 Year ARB Warranty
| SKU | CKBLA12-ARB |
|---|---|
| Manufacturer | ARB |
Write Your Own Review
| Attribute | Value |
|---|---|
| Bar Code | 9332018082435 |
| Fitting Time (min) | 150 |
| Warranty | 3 Years |
| Type | Single Compressor |
| Tyre Inflation | Fast |
| DC voltage [V] | 12 |
| Duty cycle to [%] | 100 |
| Specification | Brushless |
| Product Classification | On Board |
