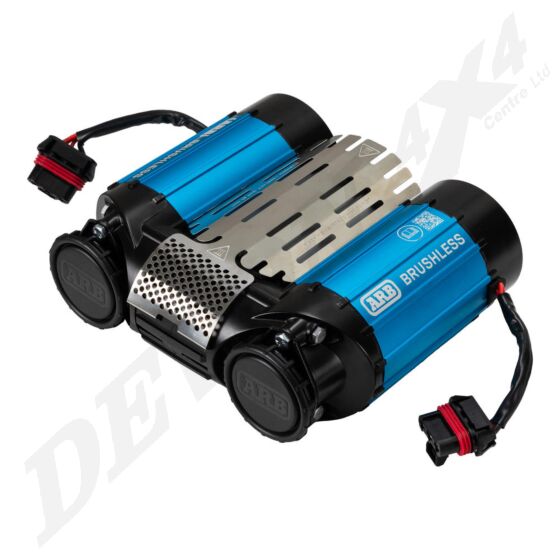

ARB - On-Board Air Compressor (Brushless) Twin 12 Volt

The ARB On-Board Air Compressor (Brushless) Twin 12 Volt is ARB's most advanced permanently mounted air compressor, combining twin brushless motors with intelligent electronic controls to deliver class-leading airflow, efficiency and reliability. Designed for serious touring and off-road use, it provides exceptionally fast tyre inflation while maintaining continuous performance in demanding environments.

NEXT-GENERATION BRUSHLESS TECHNOLOGY

Twin brushless motors deliver up to 50% more airflow than ARB's market-leading brushed twin compressor. The efficient brushless design improves performance while reducing installation complexity by eliminating external relays.

MAXIMUM AIR PERFORMANCE

Producing up to 260 litres of air per minute with a 100% duty cycle, the compressor is designed to handle demanding inflation tasks quickly and efficiently, making it ideal for larger tyres and frequent off-road use.

SMART ELECTRONIC CONTROL

Electronic speed control continuously optimises compressor performance across varying temperatures and pressure levels, ensuring reliable operation and maximum efficiency throughout every inflation cycle.

INTELLIGENT POWER MANAGEMENT

The twin compressor features staggered motor start-up to reduce initial current draw and includes motor isolation technology that can continue operating on a single motor if vehicle charging capacity becomes limited.

ACTIVE COOLING

Each compressor assembly incorporates an electronically controlled cooling fan which continues operating after shutdown until the compressor has cooled, helping maximise performance and long-term durability.

ADVANCED DIAGNOSTICS AND PROTECTION

Live audio and visual diagnostics provide real-time status reporting, while integrated voltage protection, overload protection and intelligent monitoring help safeguard both the compressor and vehicle electrical system.

EASY INSTALLATION

Quick-release cam-lock mounting allows the compressor to be removed easily when required, while the brushless architecture eliminates external relays for a cleaner, simpler installation.

KEY FEATURES

• Twin brushless motor design
• Permanent on-board installation
• Up to 50% greater airflow than ARB's brushed twin compressor
• 260L/min airflow at 0kPa
• 176L/min airflow at 200kPa
• 100% duty cycle
• Electronic speed control
• Active cooling system
• Live audio and visual diagnostics
• Staggered twin motor start-up
• Motor isolation technology
• Voltage protection
• Overload protection
• Quick-release cam-lock mounting
• Relay-free installation
• Class-leading airflow-to-weight ratio
• 3 Year ARB Warranty
