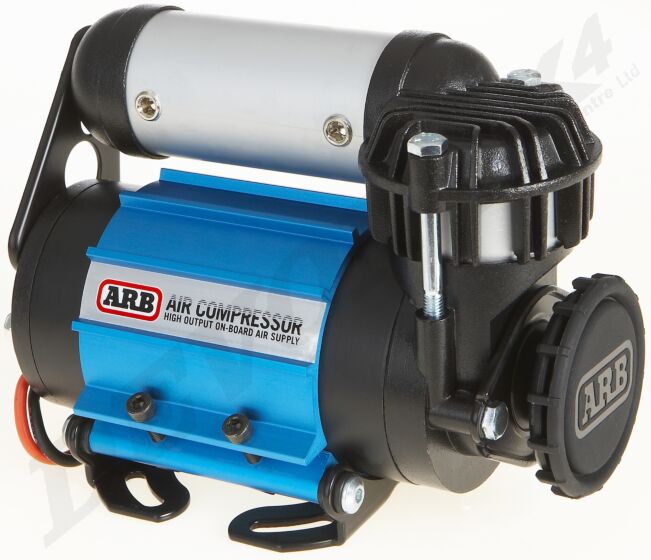

ARB - On-Board Air Compressor (Brushed) Single 24 Volt
£254.72 £212.27
CKMA24
Brand :
Overview
The ARB On-Board Air Compressor (Brushed) Single 24 Volt is a permanently mounted high-output air compressor engineered for 24V vehicles. Designed for Air Locker activation, rapid tyre inflation and a wide range of compressed air applications, it combines class-leading airflow with durable construction, making it ideal for demanding off-road and commercial use.
| Specification | Details |
|---|---|
| Voltage | 24V DC |
| Compressor Type | Single Brushed |
| Maximum Air Flow | 87.2L/min @ 0kPa |
| Air Flow @ 200kPa | 65.9L/min |
| Duty Cycle | 50% |
| Application | Air Locker Activation & Tyre Inflation |
| Warranty | 3 Years |
| Part Number | CKMA24 |
ARB On-Board Air Compressor (Brushed) Single 24 Volt
The ARB On-Board Air Compressor (Brushed) Single 24 Volt is engineered to provide a dependable source of compressed air for 24V vehicles. Designed for Air Locker activation, fast tyre inflation and a variety of compressed air applications, it delivers proven ARB performance in a permanently mounted system built for demanding off-road and commercial environments.
DESIGNED FOR 24 VOLT VEHICLES
Specifically developed for 24V electrical systems, the CKMA24 delivers the same proven reliability and performance as ARB's established compressor range while meeting the requirements of trucks, commercial vehicles and heavy-duty touring builds.
HIGH OUTPUT PERFORMANCE
Delivering up to 87.2 litres of air per minute at 0kPa, the compressor provides rapid tyre inflation and dependable airflow for Air Locker operation. Its 50% duty cycle makes it well suited to regular off-road use.
BUILT FOR HARSH CONDITIONS
Constructed from lightweight, high-strength engineering grade materials, the compressor is sealed against moisture and dust to help ensure dependable operation in challenging environments.
QUALITY ENGINEERING
A hard anodised cylinder bore reduces friction, while the Teflon-impregnated carbon fibre piston seal is designed for long, trouble-free service life. Premium internal components also contribute to quiet and reliable operation.
EASY VEHICLE INSTALLATION
The vehicle-mounted kit includes a complete wiring loom and mounting hardware for straightforward installation. The anodised mounting bracket helps dissipate heat while allowing the compressor to be repositioned through 180 degrees to suit different mounting locations.
INTEGRATED PROTECTION
For long-term reliability, the compressor incorporates an over-pressure safety valve, internal thermal protection and a heavy-duty in-line maxi fuse to safeguard the electrical system.
KEY FEATURES
- Designed specifically for 24V vehicles
- High-output single brushed compressor
- Suitable for Air Locker activation
- Fast tyre inflation capability
- 87.2L/min maximum airflow at 0kPa
- 65.9L/min airflow at 200kPa
- 50% duty cycle
- Sealed against moisture and dust
- Hard anodised cylinder bore
- Teflon-impregnated carbon fibre piston seal
- Lightweight, high-strength construction
- Includes wiring loom and mounting hardware
- Over-pressure safety valve
- Internal thermal overload protection
- Heavy-duty in-line maxi fuse
- Backed by a 3 Year ARB Warranty
| SKU | CKMA24-ARB |
|---|---|
| Manufacturer | ARB |
Write Your Own Review
| Attribute | Value |
|---|---|
| Bar Code | 881348007261 |
| Fitting Time (min) | 150 |
| Type | Single Compressor |
| Tyre Inflation | Fast |
| DC voltage [V] | 24 |
| Duty cycle to [%] | 50 |
| Pressure to [kPA] | 0 |
| Current rating at 20-¦C [A] | 7.1 |
| Volume Flow Up To [l,min] | 87.2 |
| Pressure to [kPA] | 200 |
| Current rating at 20-¦C [A] | 12.6 |
| Volume Flow Up To [l,min] | 65.9 |
| Switch | with pressure differential switch |
| Overheating protection | Yes |
| Filter Type | Particulate Filter |
| Warranty | 3 Years |
| Specification | Brushed |
| Product Classification | On Board |
